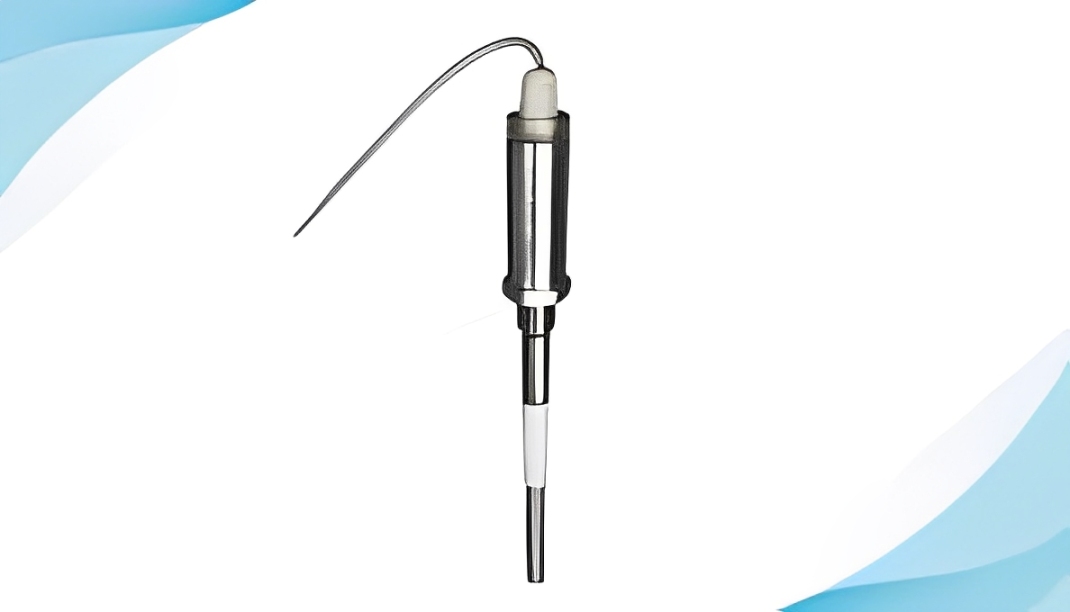

Rf Level And Position Switch

Product Image

Details

  • Process connection ½ “ BSP/ NPT
  • Probe Insulation PTFE
  • Housing Stainless Steel
  • Ambient temperature -20...60°C
  • Process Temperature -20...80°C
  • Protection Weather proof
  • Installation Top/ Side mounting
  • Connection Cable 1.5 meter , 3 wire
  • Cable gland PG7
  • Input supply 12...30 V DC, 15 mA max
  • Power – up time 2 sec
  • Hysteresis ± 1 mm
  • Repeatability ± 1 mm
  • Reaction time 0.2 sec. Type

Application

Features

RF Level Position Switch

An RF level position switch is a device that uses radio frequency (RF) technology to detect the level of a material in a container or tank. It is typically used in industrial settings to monitor the level of liquids, powders, or other materials in storage tanks, silos, or other containers.

The switch can be used to trigger alarms or shut off valves if the material level reaches a certain threshold, or to provide data on the level of the material for use in automated inventory or production systems. In addition, RF level position switch can be used in the chemical and food industry, in the production of oil and gas or any application that require level measurement.
