Electromagnetic Flow Meter

JAYCEE TECHNOLOGIES PVT. LTD. is among Pune, Maharashtra, India's leading electromagnetic flow meter and flow measurement manufacturers and suppliers. As for the products, we offer Electromagnetic Flow Meters and Flow Measurement at the most competitive price.
Flow measurement is essential in industries since it plays a pivotal role in monitoring the flow of fluids. Jaycee Technologies Private Limited is recognised for offering a complete flow-meter solution suitable for various industries.

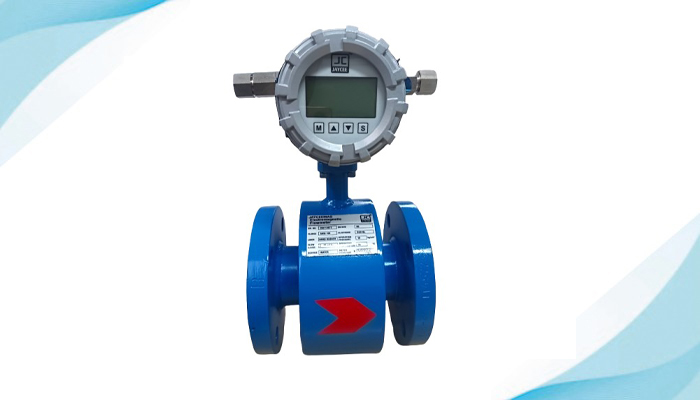

Electromagnetic Flow Meters

The Electromagnetic Flow Meters work based on Faraday’s Law of Electromagnetic Induction by accurately measuring conductive substances in a fluid. These properties include bi-directional flow, pressure loss, and easy installation, and they are suitable for water and wastewater management and chemical processing projects. Electromagnetic flow meters, also called magmeters, are accurate devices for measuring the flow rate of conductive fluids in various fields. They work under Faraday’s law of electromagnetic induction, which states that a voltage is developed when a conductor is thrust into a magnetic field. Concerning the application of magmeters, the conductive fluid can be viewed as a conductor, where when passing through the magnetic field of the meter, an electromotive force proportional to the flow velocity is produced. The meter's transmitter converts This voltage into a flow measurement.

Details

  • Business Type Manufacturer, Exporter, Supplier
  • Nominal Diameter(mm) 15 TO 2000
  • Working pressure(kg/cm) 10 to 40
  • Electrode Material SS 316 standard
  • Sensor Lining Hard Rubber/ PTFE
  • Measuring Tube Material SS304 Non Magnetic
  • End Connection Flanged/Wafer/SMS
  • Measuring Range 0.2 mtr/sec to 12 mtr/sec
  • Repeatability 0.2 of Span
  • Output 4 to 20 m ADC/RS 485, HART
  • Cable Length for Remote 10 Mtr
  • Display version Integral/Remote
  • Sensor Housing Material CS
  • Flange Standard
  • Accuracy % of measured value 0.5

Application

  • Chemical, Petrochemical
  • Process Industries
  • Fertilizer Industries
  • Pharmaceutical Industry
  • Food Industry
  • Drug Industries
  • Sugar Industries
  • Beverage Industries
  • Paper and Pulp Industries
  • Aluminum Industries
  • Steel Industries
  • Mining Industries
  • Dredging Industries
  • Water and Waste - Water
  • Management
  • And many others

Features

  • Based on Faraday's law of Electromagnetic Induction.
  • Suitable for pipe sizes of diameters 15 mm to 1000 mm
  • Coil Assembly in hermetically sealed Welded construction
  • Choice of PTFE / Neoprene Rubber /Polyurethane liners
  • Integral or Remote Transmitter
  • Field interchangeable electronics
  • Optional LED/LCD display for Flow
  • Rate or
  • Totaliser indication in Engineering Units
  • No pressure loss
  • High linearity due to characteristic magnetic field
  • Absolute Zero stability and noise elimination
  • Measurement independent of liquid properties

Frequently Asked Questions

An Electromagnetic Flow Meter, also known as a Mag Flow Meter, is an industrial instrument used to measure the flow rate of electrically conductive liquids. It operates based on Faraday's Law of Electromagnetic Induction and provides accurate flow measurement without any moving mechanical parts.

An Electromagnetic Flow Meter generates a magnetic field across the flow tube. When a conductive liquid passes through this magnetic field, a voltage is induced. The transmitter detects this voltage and converts it into a flow rate measurement, providing continuous monitoring of liquid flow.

The major advantages include:

  • High measurement accuracy and repeatability.
  • No moving parts, reducing mechanical wear.
  • Minimal pressure loss.
  • Suitable for corrosive and abrasive liquids with compatible liner and electrode materials.
  • Low maintenance requirements.
  • Bidirectional flow measurement.
  • Reliable performance in industrial applications.

Electromagnetic Flow Meters are widely used in water treatment plants, wastewater treatment facilities, chemical industries, pharmaceutical manufacturing, food and beverage processing, pulp and paper industries, and other applications involving conductive liquids.

Jaycee Technologies Pvt. Ltd. offers industrial flow measurement and instrumentation solutions for diverse process requirements. Its electromagnetic flow measurement solutions help industries achieve accurate flow monitoring, efficient process control, improved operational performance, and reliable liquid measurement.

Looking for a reliable Electromagnetic Flow Meter in India?

Choose Jaycee Technologies Pvt. Ltd. for industrial flow measurement, instrumentation, and process automation solutions.
