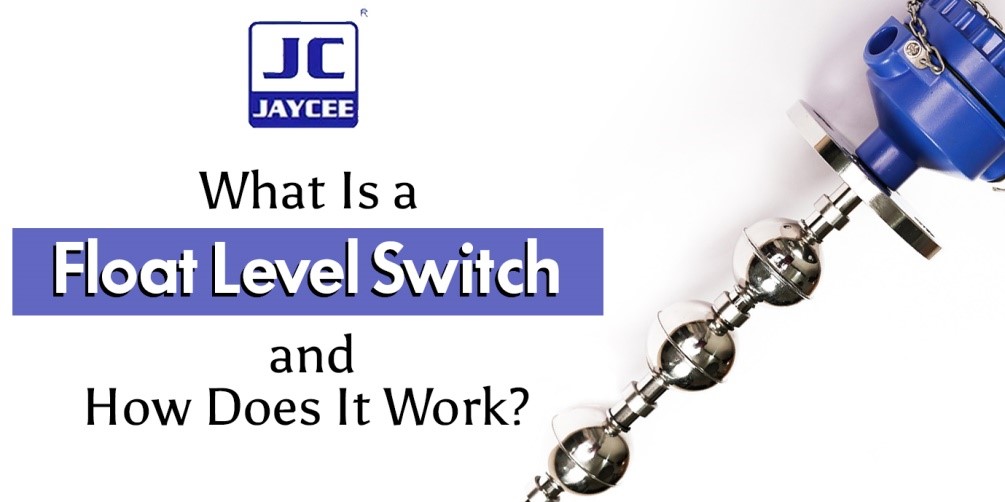

What Is a Float Level Switch and How Does It Work?

In the enormous arena of industrial automation, the float level switch is the unsung hero of liquid management. Whether it is stopping a huge overhead tank from overflowing or making sure that a critical pump does not run dry, this ingenious yet simple device is the foundation of liquid level control. Although complex radar and ultrasonic sensors have their applications, the mechanical robustness and economic viability of a float switch are yet to be matched in most liquid handling applications.
At Jaycee Technologies Private Limited, we are experts in the design and development of precision-engineered sensing solutions that enable smart industrial infrastructure. We realize that in today’s high-speed manufacturing world, the failure of a simple level sensor can cause a catastrophic system shutdown or even pose serious environmental risks. This is why we are committed to developing indigenous, high-quality float level switches that can withstand even the most hostile industrial conditions.

What Is a Float Level Switch?

A float level switch is a kind of liquid level detection device that employs a mechanical float to indicate the increase or decrease of a liquid in a tank. Unlike continuous level sensors, which give a continuous reading of the liquid level, a float switch is a "point-level" controller. It is intended to initiate a particular operation, such as turning on a pump or turning off a valve or alarm, when the liquid attains a predetermined level.

Typically, the essential functions of a high-quality float level switch are the following:

• Automatic Pump Control: Controlling "tank full" or "tank empty" conditions to enable automatic refilling or draining.
• Overflow Protection: Acting as a safety device to prevent spills that could result in a violation of safety standards or material waste.
• Dry-Run Protection: Preventing costly pumps from being damaged by ensuring that they are turned on only when there is enough liquid in the tank.

How Does a Float Level Switch Work?

The functional mechanism is based on the principles of buoyancy and magnetism. Although there are many types, the most popular industrial type of float level switch is the magnetic float switch, which functions in a continuous three-step process:

1. Buoyancy Phase

The switch is made up of a hollow float that holds a permanent magnet. When the liquid level in the container increases, the float rises along with a fixed stem (or hinge).

2. Magnetic Interaction

Within the fixed stem is a reed switch that is sealed hermetically. When the float's permanent magnet is in the exact position of the reed switch, the magnetic force causes the switch contacts to either make (turn ON) or break (turn OFF) a circuit.

3. Signal Execution

The signal from the change in the electrical circuit state (ON/OFF) is transmitted to a controller, relay, or PLC. This causes a specific mechanical action to take place, like turning off a water inlet valve or turning on a high-level warning light.

Primary Types of Float Level Switches

Selecting the appropriate type is critical to maintaining system integrity in the long run. The primary types are:

1. Vertical Float Switches

These are installed at the top or bottom of a tank. The float travels up and down a vertical stem. These are great for use in deep tanks where multiple level points (such as High-High, High, Low, Low-Low) must be sensed with a single probe.

2. Horizontal (Side-Mounted) Switches

These are installed through the side of a tank. When the liquid reaches the switch, the float opens on hinges, activating the switch inside. These are great for use in small tanks or where access to the top is difficult.

3. Cable Float Switches

These are commonly employed in sewage and wastewater applications. They feature a large float that is connected to a cable. As the liquid level rises and falls, the float leans, which in turn activates an internal ball that turns the switch?

Why Choose Jaycee Technologies?

As a premier level sensing solution manufacturer, Jaycee Technologies is dedicated to:

• Indigenous Quality: Our products are designed to meet international standards while being optimized for the rugged conditions of the Indian industrial landscape.
• Material Excellence: We offer switches in SS316, PP, and PVDF to ensure compatibility with everything from drinking water to corrosive chemicals.
• Customized Solutions: Whether you need a miniature switch for a medical device or a multi-point vertical switch for a chemical plant, we provide tailored consultations.

Conclusion

The reliability of your liquid management system is solely dependent on the quality of your level sensing components. A quality float level switch from Jaycee Technologies will give you a safe, simple, and effective means of monitoring your assets. By understanding how these components work and choosing the right material and configuration, you can avoid the dangers of overflows and pump failures.
