Conductivity Level Sensor

Conductivity Level Sensor Conductivity Level Sensor

Conductivity Level Sensor

Conductivity level sensors are widely used in industries that require accurate and reliable level measurements of conductive liquids. These sensors operate based on the principle of electrical conductivity, providing continuous level monitoring and control. In this comprehensive guide, we will explore the working principles, features, applications, and benefits of conductivity level sensors.

Working Principle:

Conductivity level sensors operate by measuring the electrical conductivity of the liquid being measured. The sensor typically consists of two or more electrodes, usually made of stainless steel or other conductive materials. When the electrodes are immersed in a conductive liquid, an electrical circuit is formed. The conductivity of the liquid affects the electrical resistance in the circuit. As the liquid level changes, the conductivity between the electrodes varies, leading to changes in the electrical resistance. This change in resistance is then converted into an electrical signal, which is used to determine and indicate the level of the liquid.

Features of Conductivity Level Sensors:

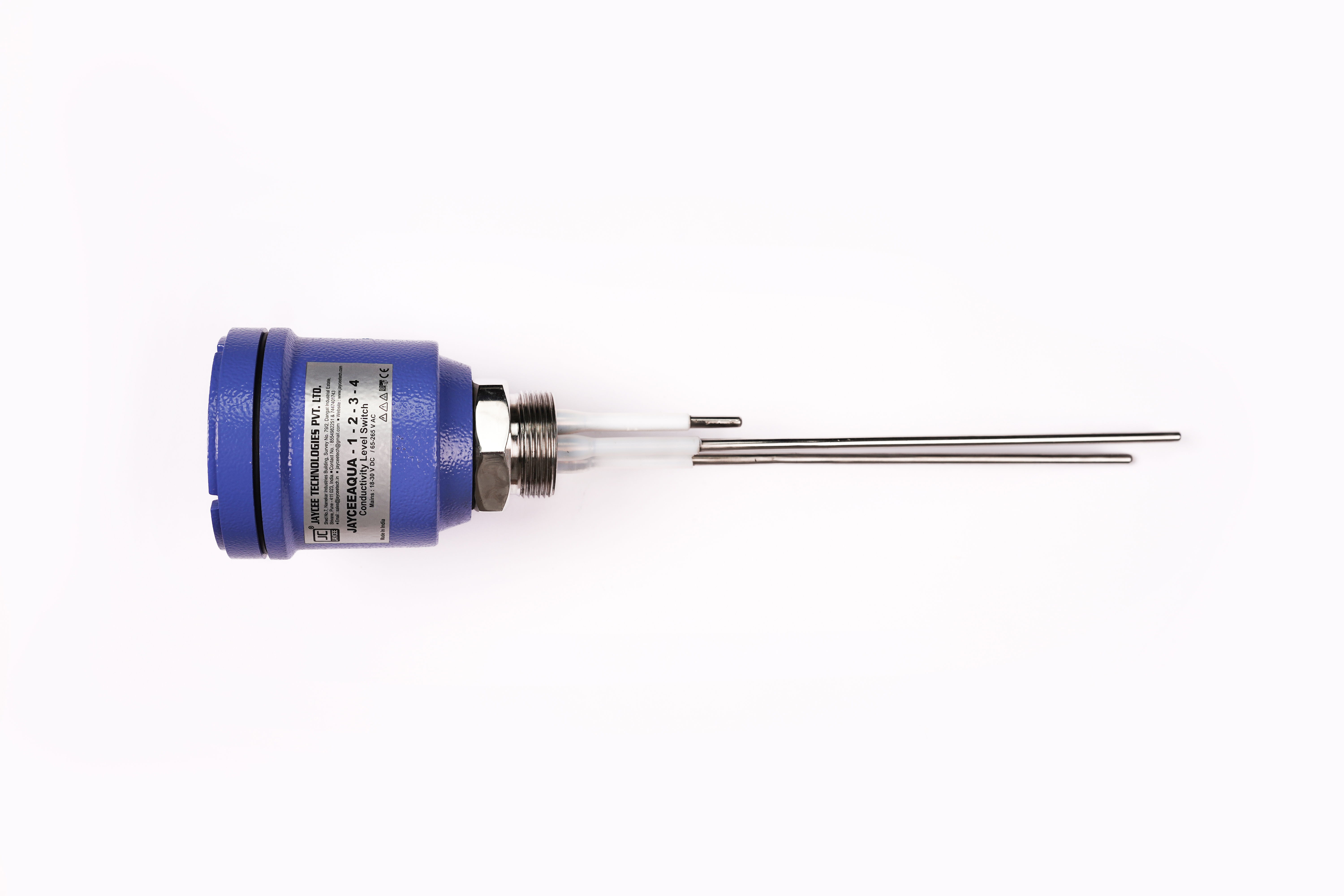

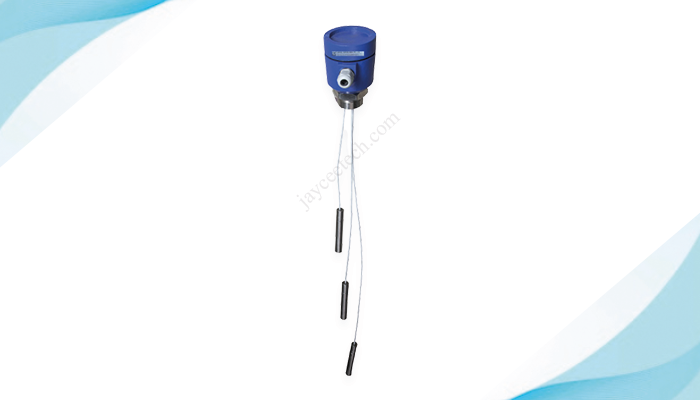

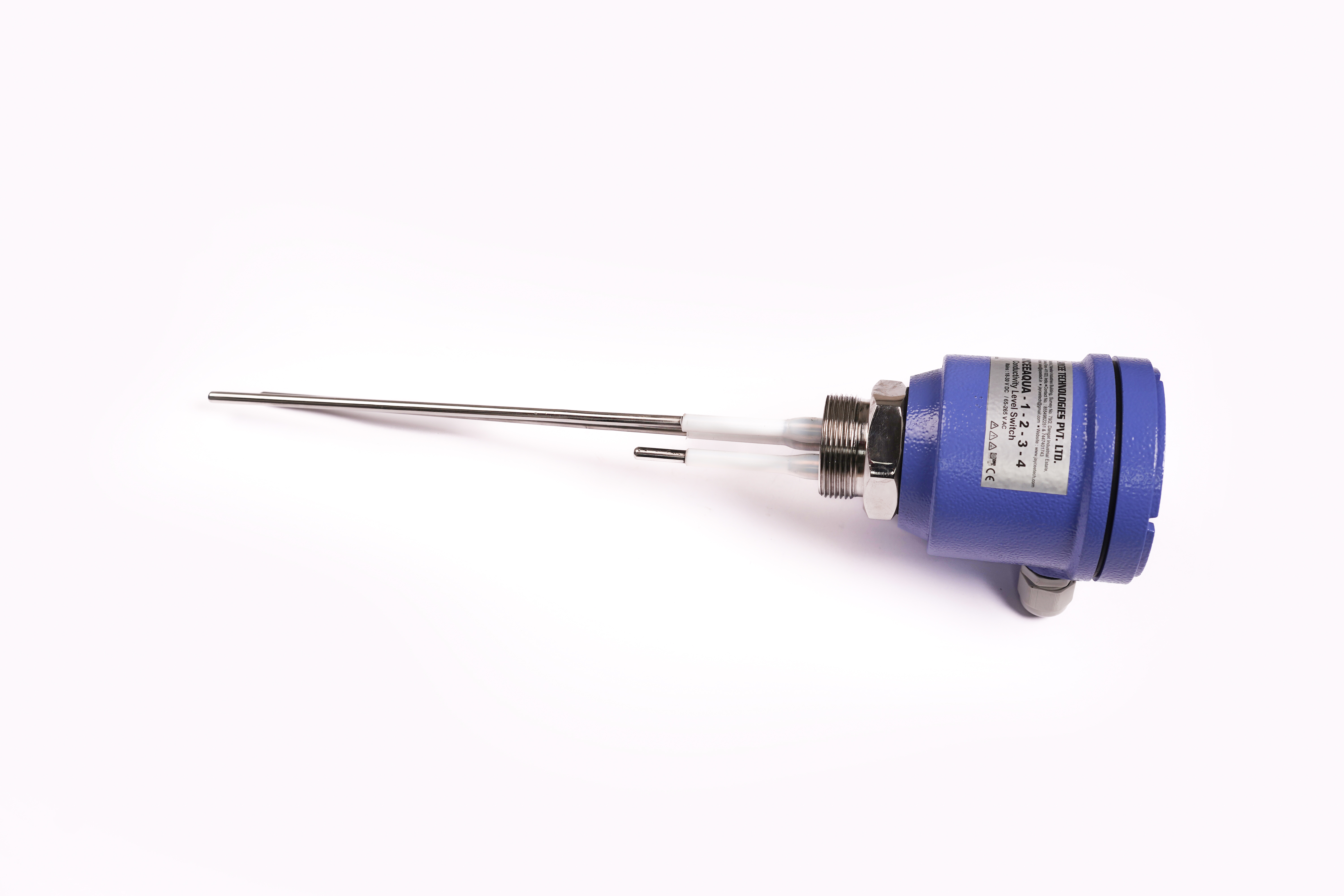

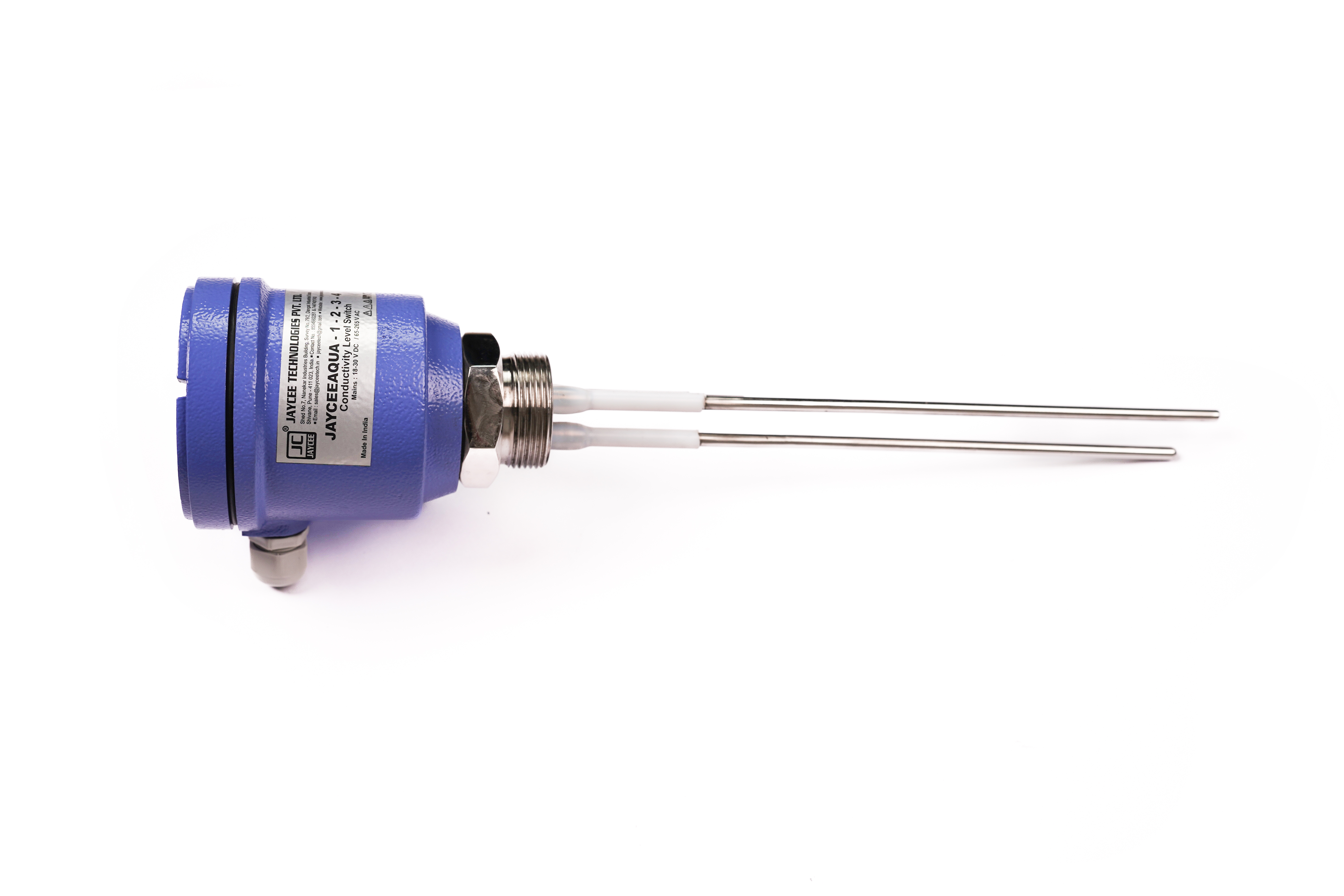

Multiple Electrode Configurations: Conductivity level sensors offer various electrode configurations, such as single-point probes, multiple-point probes, and cable-based designs. This allows for flexibility in selecting the most suitable sensor design for the specific application and tank geometry.

Adjustable Sensitivity: These sensors often provide adjustable sensitivity settings, enabling fine-tuning of the detection threshold for different conductivity levels and liquids.

Temperature Compensation: Some conductivity level sensors feature temperature compensation capabilities to account for variations in liquid conductivity caused by temperature changes, ensuring accurate level measurements.

Mounting Options: They can be mounted externally on the outside of the tank or vessel, or installed internally through a threaded connection or flange, offering versatility in installation and compatibility with different tank configurations.

Output Options: Conductivity level sensors provide various output options, including analog signals (4-20mA, 0-10V) and digital signals (Modbus, HART), facilitating seamless integration with control systems and data acquisition devices.

Applications of Conductivity Level Sensors:

Conductivity level sensors find applications in various industries and scenarios, including:

Water Treatment: They are used in water treatment plants to measure levels of conductive liquids, such as wastewater, sewage, and chemicals, in tanks, clarifiers, and basins.

Chemical Processing: Conductivity level sensors are employed in chemical plants to monitor levels of conductive liquids, acids, solvents, and corrosive chemicals in storage tanks, reactors, and process vessels.

Food and Beverage: They find applications in the food and beverage industry for measuring levels of conductive liquids, such as water, milk, juices, and beverages, in tanks and containers.

Pharmaceutical Manufacturing: Conductivity level sensors are utilized in pharmaceutical facilities to measure levels of conductive liquids, pharmaceutical ingredients, and process solutions in tanks and vessels, ensuring precise formulation and production control.

Petrochemical and Oil Refineries: They are employed in petrochemical plants and oil refineries to monitor levels of conductive liquids, such as crude oil, petroleum products, and chemical solutions, in storage tanks and processing units.

Benefits of Conductivity Level Sensors:

Accurate and Reliable Measurements: Conductivity level sensors provide accurate and reliable level measurements, even in challenging process conditions or when dealing with conductive liquids with varying properties.

Continuous Level Monitoring: These sensors offer continuous level monitoring, allowing for real-time data acquisition and improved process control.

Wide Range of Applications: Conductivity level sensors can be used for measuring the levels of various conductive liquids, making them versatile for different industrial applications.

Cost-Effective Solution: They are relatively cost-effective compared to other level measurement technologies, providing a cost-efficient option for conducting level monitoring.

Easy Installation and Maintenance: Conductivity level sensors are designed for easy installation and require minimal maintenance, ensuring convenience and reducing downtime.

Conductivity level sensors are essential instruments for accurate and reliable level measurement of conductive liquids. With their working principles based on electrical conductivity, versatile features, and various applications, conductivity level sensors contribute to improved process control, efficiency, and productivity in industries such as water treatment, chemical processing, food and beverage, pharmaceutical manufacturing, and petrochemicals. By incorporating conductivity level sensors into their operations, businesses can achieve accurate level measurements, continuous monitoring, and optimized processes.
